SKU

CLZ512

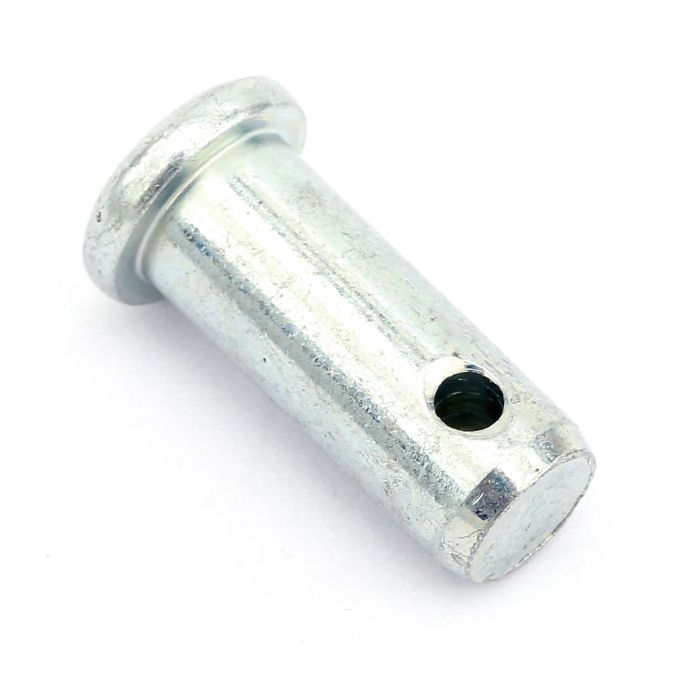

Mini Master Cylinder Clevis Pin

Name: Mini Master Cylinder Clevis Pin
SKU: CLZ512
Price: 1.176001 GBP
Availability: InStock

Be the first to review this product

Special Price £1.18 £0.98 Regular Price £1.39

In stock

SKU

CLZ512

The clevis pin for the master cylinder to the brake or clutch pedal.

Frequently Bought Together

Mini Master Cylinder Clevis Pin
Special Price £1.18 £0.98 Regular Price £1.39
Clevis Pin - Brake Servo - Mini '89on
Special Price £5.53 £4.61 Regular Price £7.78
Plastic Body Clutch Master Cylinder for Classic Mini - Universal Fit
Special Price £80.28 £66.90 Regular Price £89.89
Handbrake Cable - Rear Mini 1976 on
Special Price £8.99 £7.49 Regular Price £10.99
Clutch Master Cylinder Repair Kit - 1985-2001
Special Price £9.11 £7.59 Regular Price £12.82

Details

The clevis pin that fastens the brake and clutch pedals to the master cylinder. Dont forget to order a new split pin to fit this with, see PS104221.

Buy top quality Classic Mini, brake spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Yellow tag, '85 on (front/rear split) pre servo		GMC227
1	Master Cylinder - Green tag, with servo	- '89 on	GMC90376
1	Conversion Kit - to fit a GMC227 master cylinder to all pre		BAU5654
	85 Mini with front rear split brake system. Original master cylinders are no longer available - GMC159 & GMC160	NLA	BAU5654LHD
2	Cap includes Switch for GMC227 / GMC90376		GRK6009
3	Repair kit	GMC167	GRK1002
3	Repair kit	GMC195	GRK1016
3	Repair kit	GMC159/160	GRK1019
3	Seal repair kit	GMC227	GRK1035
3	Seal repair kit	GMC90388	GRK1032
	Master Cylinder - Square reservoir for split diagonal		GMC167
4	Master cylinder gaskets (dual line)		31G840
4	Master cylinder gaskets (single line)		31G279
5	Nut - cylinder to bracket		GHF201
6	Spring Washer - cylinder to bracket		GFK1125
7	Limiter valve, bulkhead fitment	'78 on	FAM7821
8	Washer-spring-bolt		GFK1124
9	Bolt-valve to dash member		BT604161
	Master Cylinder - Standard, plastic tank type	- pre '76	GMC171
10	Master Cylinder - tin tank type	Cooper S/GT	GMC172OE
10	Master Cylinder - Standard, Tin tank type	- pre '76	GMC171OE
11	Repair kit (2 x ring seals)	GMC171/172	BAU1247
11	Repair kit (1 x ring, 1 x cup seal)	early GMC171/172	GRK1028
12	Brake & Clutch Master Cylinder Cap for GMC171/172		513123A
13	Reservoir extension - white plastic (tin tank only)		BHA4661
14	Clevis Pin - master cylinder to pedal		CLZ512

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Brake pedal (non servo type)	- RHD to '90	NAM3112
	Brake pedal - RHD '90 on	NLA	SKB102810PMA
2	Bronze Bush - brake pedal	RHD	2A3034
	Plastic Bush - brake pedal	LHD	NAM8522
	Brake Pedal tube assembly	- LHD '90on	NAM8514
3	Pedal Box assembly - RHD '88 - '96	NLA	SKU10043
	Pedal Box assembly,	- LHD '88 - '96	SKU10042
3	Pedal Box assembly,	- RHD '97 on	SKU101220
	Pedal Box assembly,	- LHD '97 on	SKU101210
4	Pivot shaft brake/clutch pedal	RHD	2A5880
	Pivot shaft brake/clutch pedal	LHD	NAM8524
5	Nyloc nut for 2A5580		GFK3322
6	Clevis Pin - pedal to master cylinder		CLZ512
7	Return spring	- '59-'88	2A5652
	Return spring	- LHD '88on	NAM8547
8	Set Screw - bracket to body		SH605051
9	Spring Washer - screw bracket to body		GFK1125
10	Brake/Clutch pedal rubber	- up to '76	GPR104A
10	Brake/Clutch pedal rubber,	- '76 - '90	GPR107A
10	Brake/Clutch pedal rubber - '90 on	NLA	SZU1001
11	Bracket - stoplight switch,	- RHD '88 - '94 (carb)	FAM4370
11	Bracket - stoplight switch,	- RHD '91on (Injection)	SKU10011
12	Nut - stoplight bracket		GHF212
13	Washer - stoplight bracket		WC106041
15	Rubber Boot - servo control arm		NAM8567
16	Pivot Bracket - brake pedal LHD '89on	NLA	SKU10039
17	Flanged Nut - M8		FN108041
18	Brake pedal return spring,	- RHD '88on	NAM8544
19	Bracket - stoplight switch,	- LHD '91on (Injection)	SKU10012
19	Bracket - stoplight switch,	- LHD '88 - '94 (carb)	NAM8643
20	Nut - stoplight bracket to pedal box		CDU3989
21	Washer - stoplight bracket to pedal box		GFK1125
	Brake light switch,	- '76 on	13H3735
22	Return Spring - crank to servo bracket		NAM9198
23	Brake pedal crank assembly,	- '88 on	NAM8541
24	Pivot shaft - pedal crank assembly	NLA	NAM8574
25	Plastic insert for crank assembly		NAM8546
26	Clevis pin - crank to servo		NAM8540
27	Split pin for NAM8540		PS104221
28	Bracket - servo mounting		SKU10034

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Pedal Assembly - Clutch - RHD		NAM3116
	Pedal Assembly - Clutch - LHD		NAM3115
2	Bush		2A3034
3	Bracket - Brake and Clutch - RHD	'88-'96	SKU10043
	Bracket - Brake and Clutch - LHD	carb '88-'94	SKU10040
	Bracket - Brake and Clutch - LHD	injection '91-'96	SKU10042
3	Bracket - Brake and Clutch - RHD	MPi '96on	SKU101220
	Bracket - Brake and Clutch - LHD	MPi '96on	SKU101210
4	Set Screw - mounting bracket		SH605051
5	Spring Washer - mounting bracket		GHF332
6	Pedal Rubber Pad - early		GPR105A
6	Pedal Rubber Pad -		GPR107A
6	Pedal Rubber Pad -		SZU10001
7	Shaft - Clutch And Brake Pedal		2A5880
8	Nut - Nyloc - pedal shaft		GFK3322
9	Pin - Clevis		CLZ512
10	Spring - Pedal Return	'59-'88	2A5652
	Spring - Pedal Return - RHD	'89on	NAM8544
	Spring - Pedal Return - LHD	'89on	NAM8547
11	Master cylinder - early metal tank type		AAU4969
11	Master cylinder - late plastic tank type		STC100330
12	Filler Cap		513123A
14	Kit Repair - master cylinder (2 ring type)		GRK3004
	Kit Repair - master cylinder (1 ring and cup type)		GRK3007
15	Sealing Washer		31G279
16	Copper Pipe 27.94cm (11") Long - RHD		ACP455
16	Copper Pipe 86cm (34") Long - LHD		ACP456
17	Rubber clutch hose - pre verto		GVP1020
18	Rubber clutch hose - verto		GVP1009
19	Bolt - Banjo - Hose To Slave Cylinder		C5192A
20	Copper Washer - Banjo Bolt To Banjo		3H550
21	Copper Washer - Banjo To Slave Cylinder		233220A
23	Washer - Plain - Clutch Hose To Dash		WB116101
24	Nut - Lock - Tubenut		2K8686
25	Washer - Lock - Tube - Nut		WE600101

More Information

More Information
SKU	CLZ512
Manufacturer	OE Spec
