Oil Transfer Pipe - Stainless Aeroquip Braided Pipe - Special

Name: Oil Transfer Pipe - Stainless Aeroquip Braided Pipe - Special
SKU: CAM1018-6
Price: 78.024001 GBP
Availability: InStock

Be the first to review this product

Special Price £78.02 £65.02 Regular Price £85.85

In stock

SKU

CAM1018-6

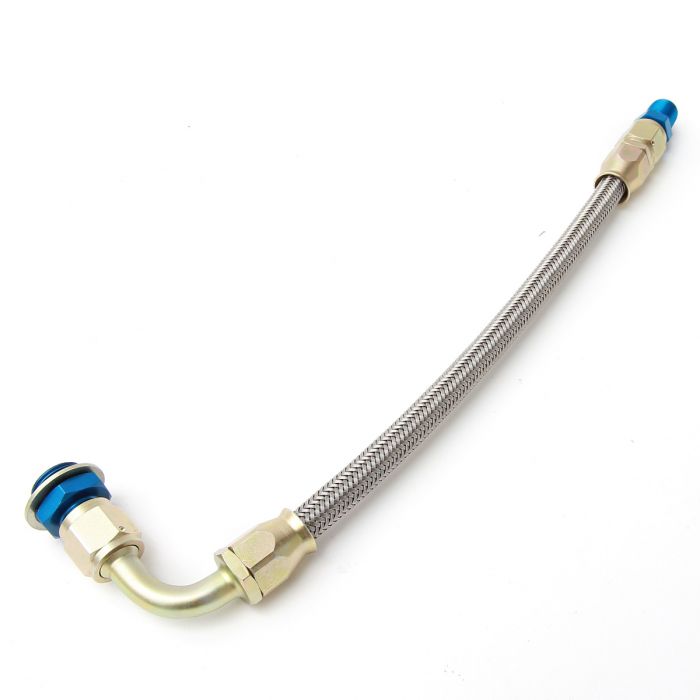

Oil transfer pipe - stainless aeroquip braided pipe - special

Frequently Bought Together

Oil Transfer Pipe - Stainless Aeroquip Braided Pipe - Special
Special Price £78.02 £65.02 Regular Price £85.85
Cooper Chrome Fuel Cap - LH Tank
Special Price £35.10 £29.25 Regular Price £39.00

Details

This is a replacement oil transfer pipe finished in stainless steel aeroquip braided. The original fixed pipe is no longer available. This allows fitment of a pre 1992 filter head to a 1992 on block eg you can now fit a 12A2032 pre 1992 filter head to an injection block. This is because the injection filter head is no longer available.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Oil Filter Head - spin on type		12A2032
2	Oil Filter - Mk1 - paper type		GFE103
	Oil Filter - Automatic to '96		GFE104T
2	Oil Filter - all models including SPi		GFE443
2	Oil Filter - MPi/MPi auto only		CDU1268
2	MPi oil cooler filter		2008
3	Flange Bolt - filter head to crankcase		TAM1186
	Stud - Oil Filter Head		CHS2513
	Nut - Filter Head		GFK3213
	Washer - Filter Head		GFK1115
	Spring Washer		MSLMS0047
4	Gasket - Oil Filter head to cylinder block - early		88G402
4	Gasket - Oil Filter head to cylinder block - late		12A2035
5	Pipe - oil filter to crankcase aeroquip	pre '90	TAM2106AERO
6	Screw - banjo union		2A715
7	Copper Washer		22A134
8	Connector-oil pipe		TAM2119
8	Connector-oil pipe		TCZ106
9	Pipe - oil filter to crankcase	'90 on	LQP10033AERO
9	Pipe - oil filter to crankcase		CAM1018-6
10	Tube Nut - pipe		LYH10014
11	Rubber Seal - pipe		LZB10017
12	Pipe - oil filter - gearbox to crankcase - Automatic		LQP10038
13	Adaptor-pipe to gearbox	NLA	DAM7601
14	'O' Ring - Automatic		22A1563
15	Oil Pump - 2 bolt 1275cc A+	Slot Drive	AHU1048
15	Oil Pump - high capacity	Slot Drive	CAM86614
15	Oil Pump - 850cc, 998cc, 1098cc	Peg Drive	12G793
15	Oil Pump - 1275cc	Spider Drive	CHM140
15	Oil Pump - 3 bolt 998cc A+	Slot Drive	GLP139
16	Gasket-oil pump		12G730B
17	Flange Bolt - pump to crankcase 1/4" UNF x 1 1/2"		TAM1174
17	Bolt - pump to crankcase 1/4" UNF x 1 3/4"		BH604141
	Spring Washer		GFK1124
18	Oil Pump - Automatic	NLA	GLP107
19	Screw - allen - pump to crankcase	NLA	12A1254
20	Pipe-oil outlet - Automatic		22A1185
21	'O' Ring - Automatic		22A1562
22	Block - outlet pipe - Automatic	NLA	22A1187
23	'O' Ring-internal - Automatic		22A1560
24	Valve - oil release		12H865
25	Spring - oil release valve		6K853
	Oil Pressure release valve	KIT	12H865KIT
26	Copper Washer - release valve		6K431B
27	Release valve cap nut		12A1851
28	Oil Dip stick	pre '97	LQM100380
28	Oil Dip stick	'97 on	LQM100630
	Oil Dip stick CHROME - Blue, Red or Polished top		MSLMS0539
	Oil Dip stick - Automatic		DAM7599
	Oil Pressure Switch		GPS133
29	Oil Pressure Switch	MPi	GPS135

More Information

More Information
SKU	CAM1018-6
Manufacturer	Mini Sport
